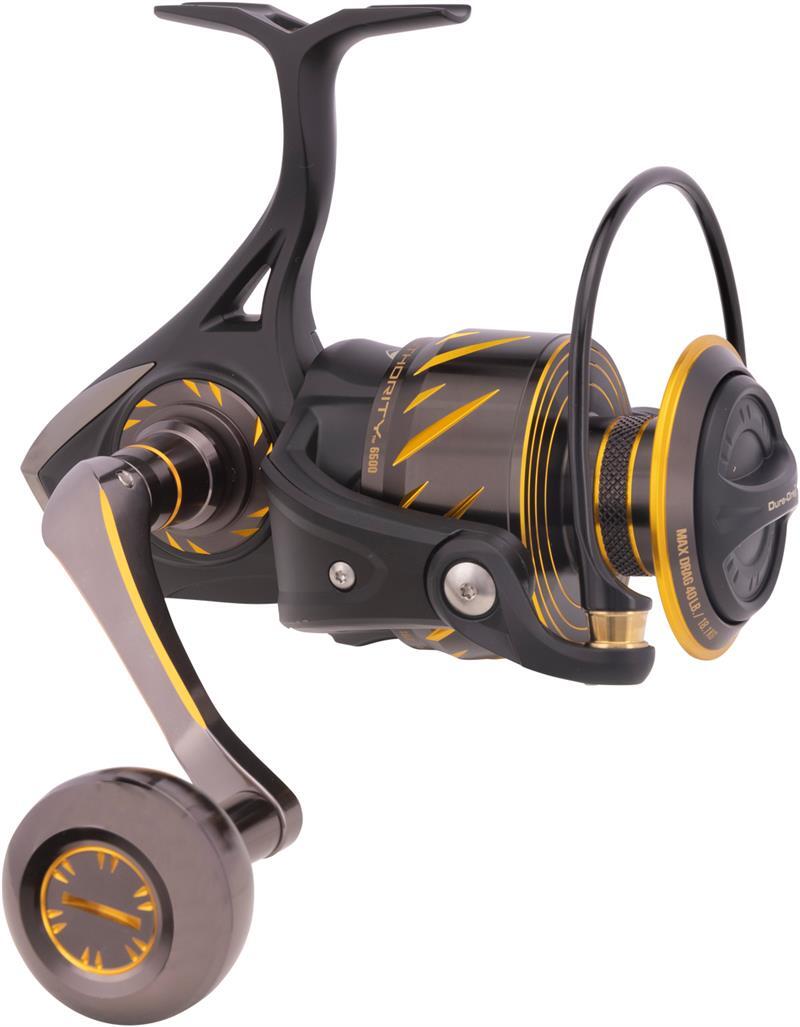

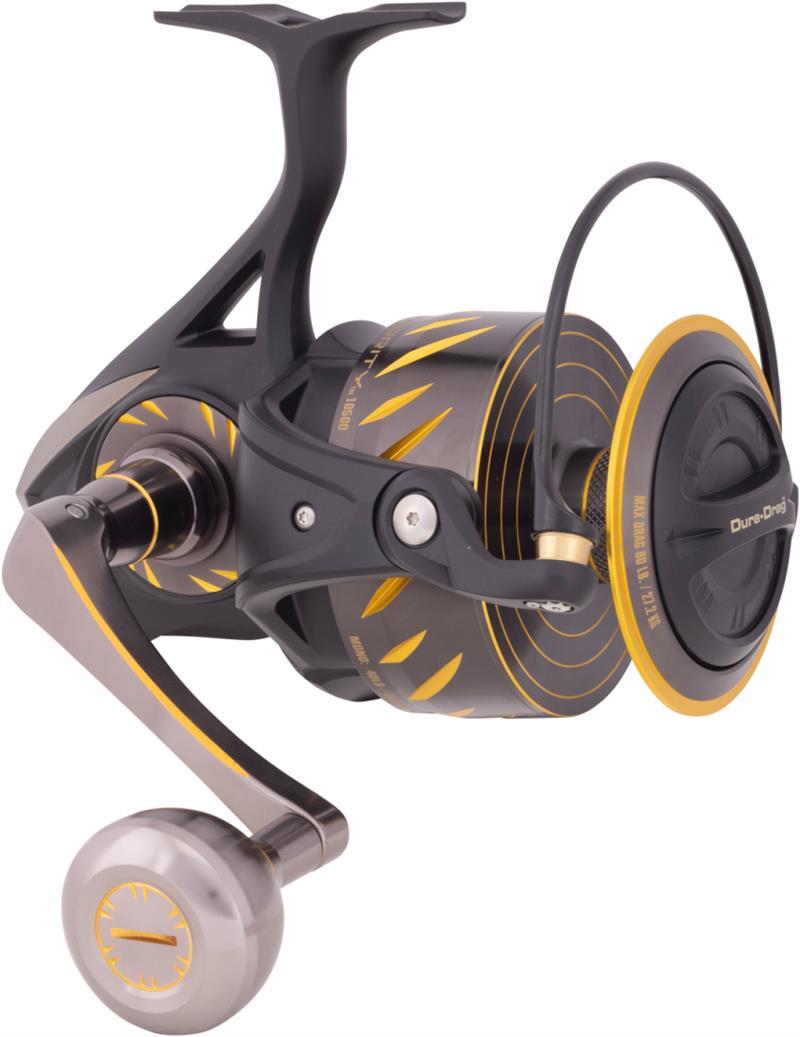

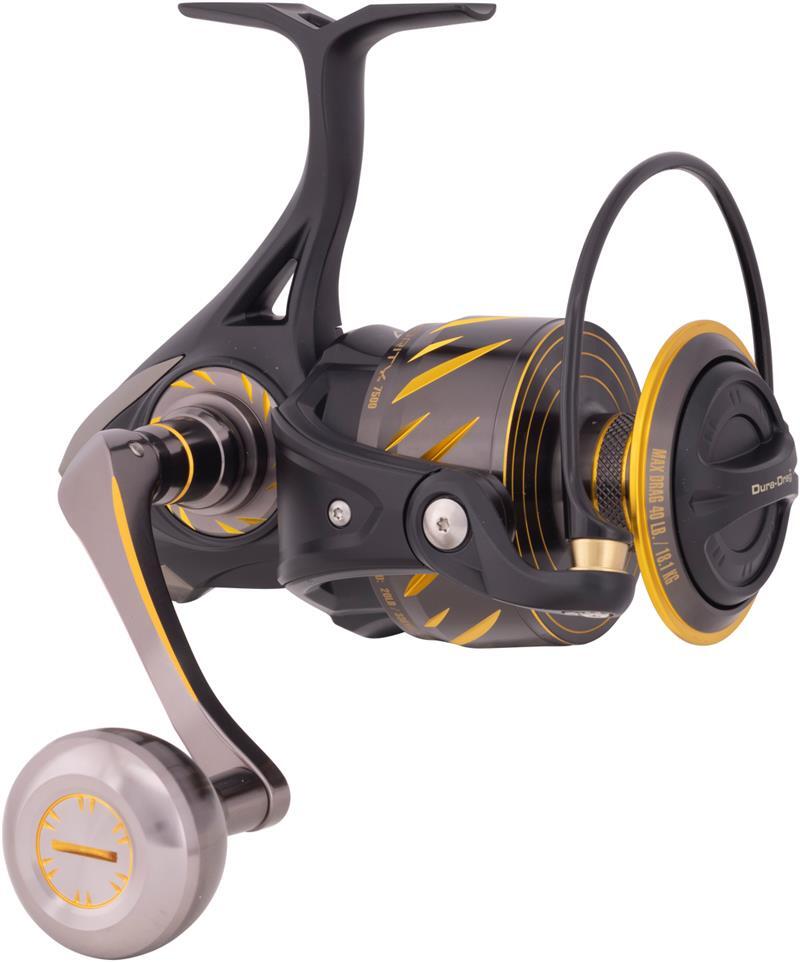

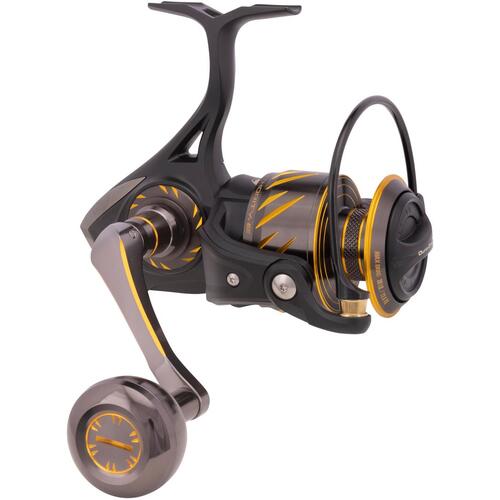

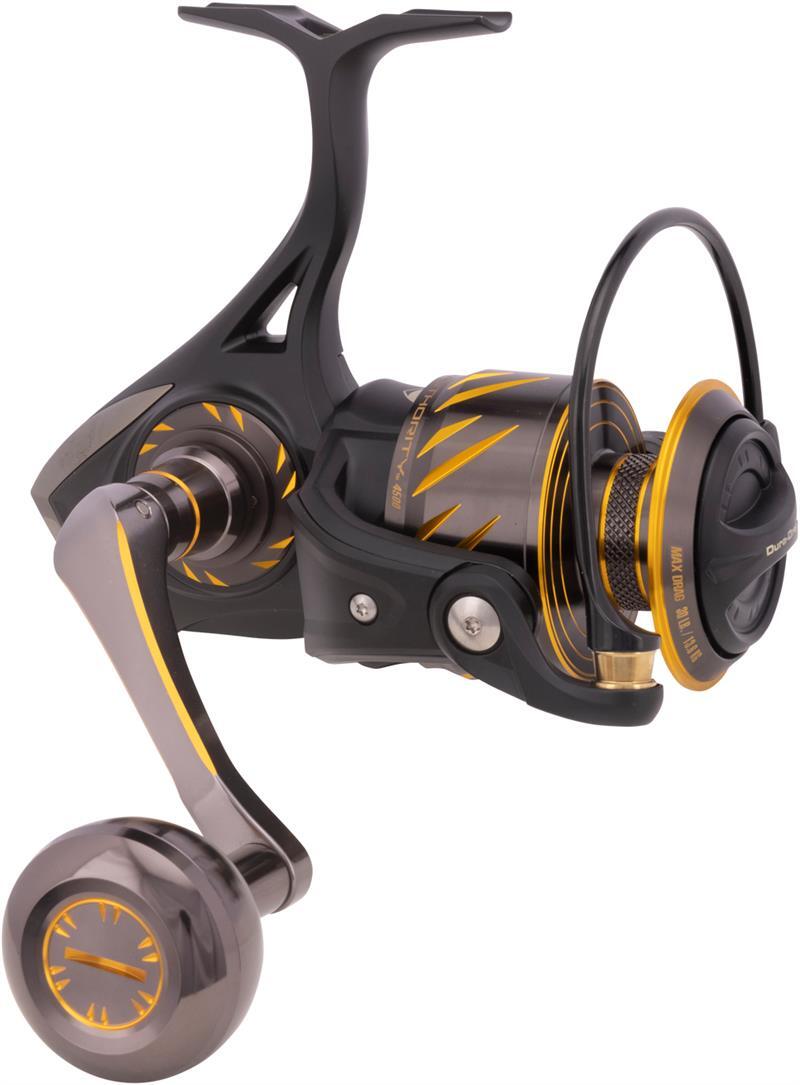

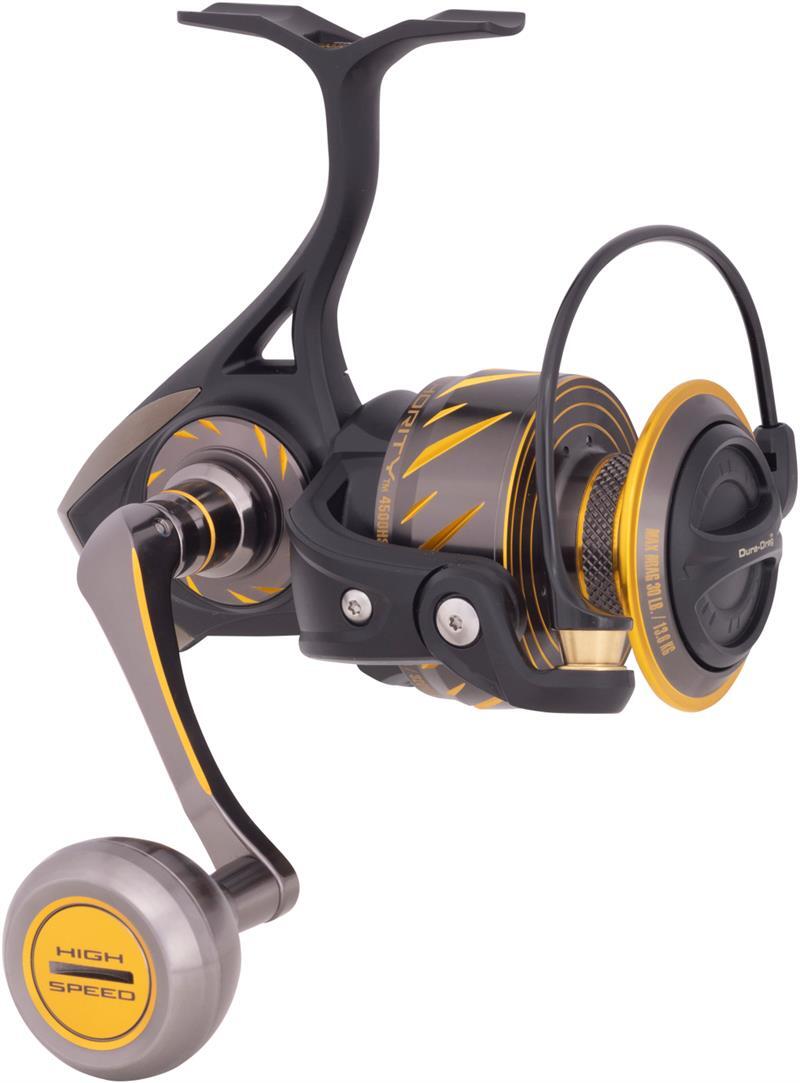

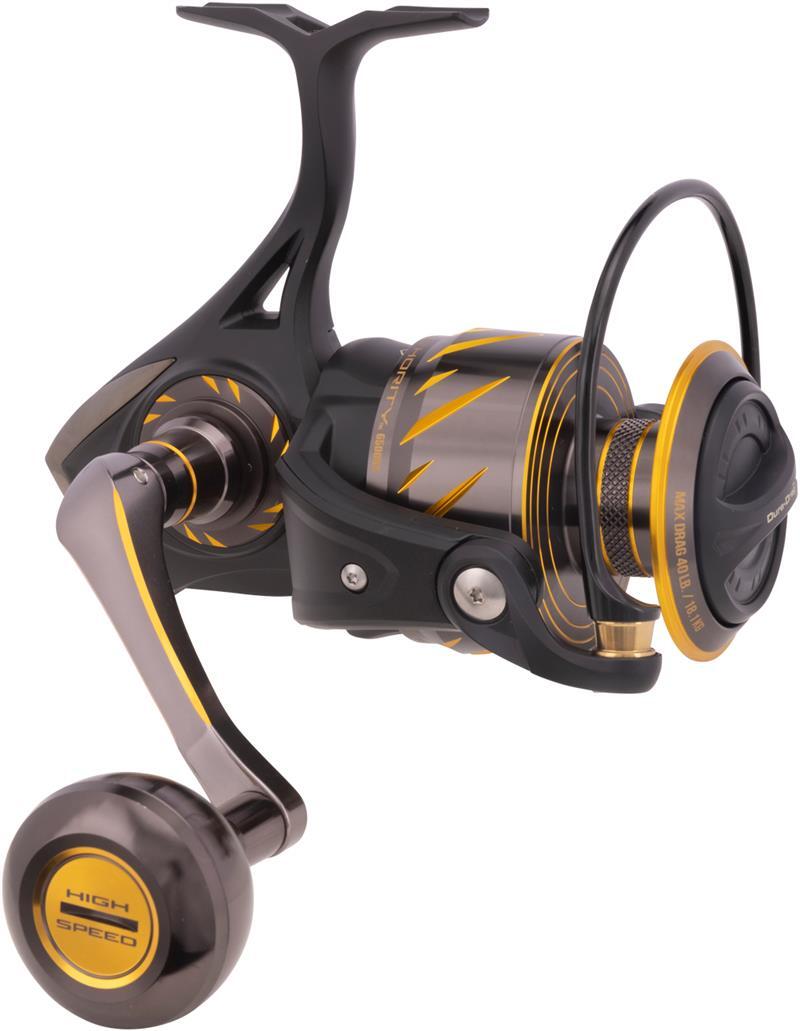

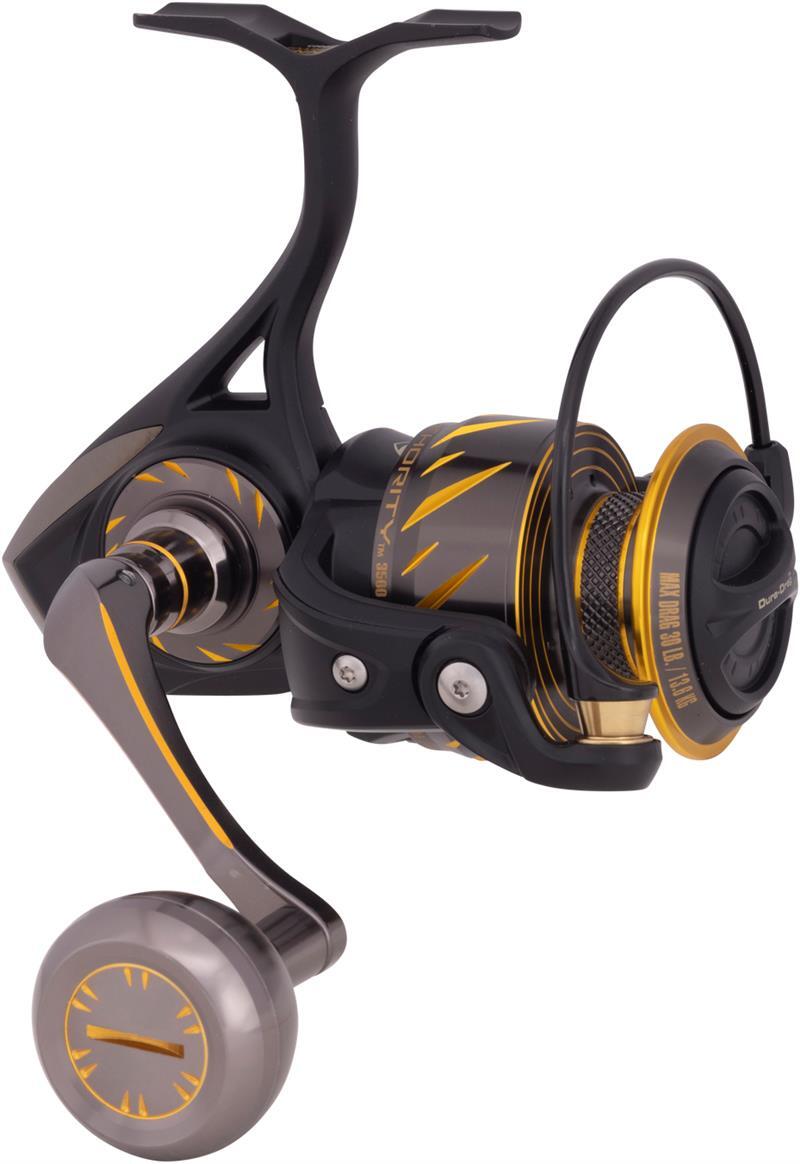

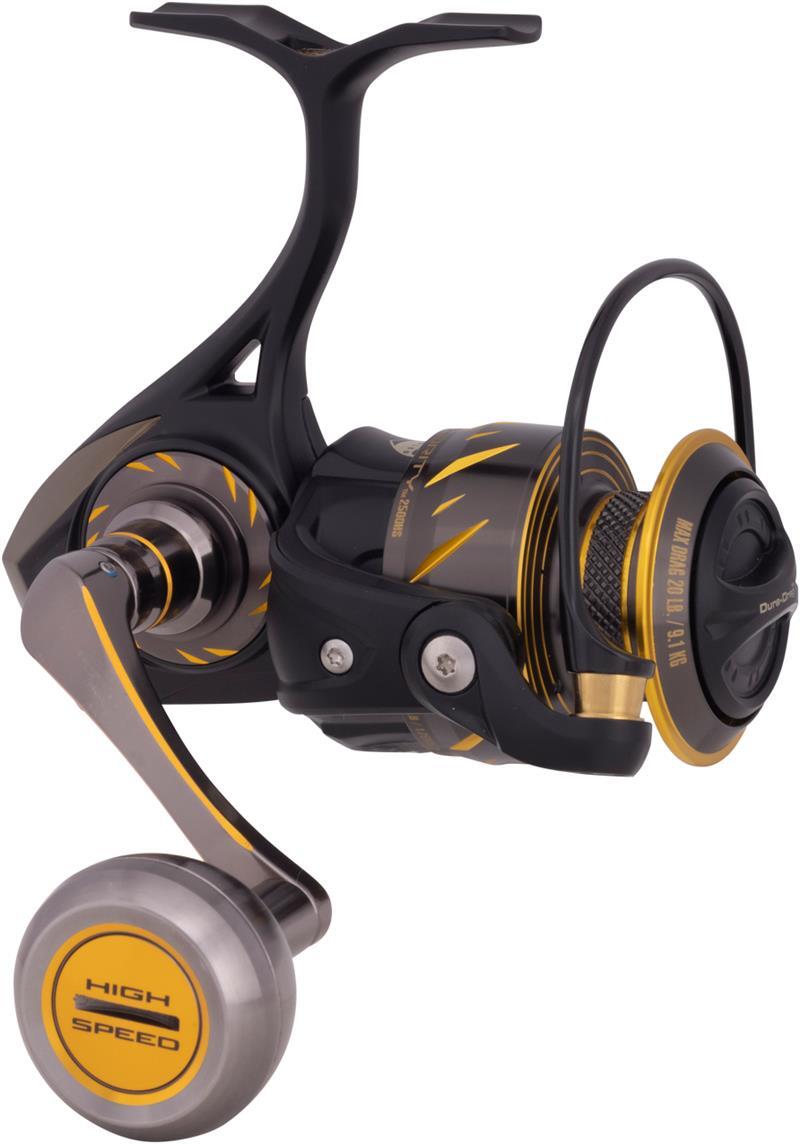

PENN AUTHORITY 2500 SPIN REEL
1563146
Penn’s Most advanced reel yet – let the battle begin
With an IPX8 sealed body AND spool, this reel takes long runs in heavy seas or the pounding of big surf in its stride. Beefed up by ultra-durable CNC machined stainless steel main and pinion gears, the patented Dura-Drag™ technology enforces obedience, eliminating hesitation even under the most extreme settings. A 12+1 premium stainless steel bearing system combines with Leveline slow oscillation to ensure enduring smoothness and precision, behind all that trademark PENN® power. The lasting AUTHORITY™ in saltwater spinning reels is here.
Product Features:
Machined Aluminum Power Knob
No matter the adversary, grab on and crank with confidence with the AUTHORITY's machined aluminum Power Knob, with spare Hypalon handle knobs also included across the range (Excluding 2500 & 2500HS which feature Hypalon handle only).
Full Metal Body, Sideplate & Rotor
Tough from the inside out, the AUTHORITY's Full Metal Body, Sideplate and Rotor keeps gears protected and in alignment Eliminating any flex, the AUTHORITY's frame is as close as you’ll get to bulletproof in a fishing reel.
Stainless Steel CNC Main and Pinion Gears
An ultra-durable stainless steel gear train combines with a fully supported pinion tail and spool shaft to withstand the heaviest loads. State of the art Computer Numerical Control technology machines gears out of a solid piece of metal ensuring exact alignment, smooth long-term performance and cranking torque rigidity when trying to get that last wind on a hard fighting fish.
Ipx8 Sealed Body, Spool Drag Assembly and Handle
Independently verified by the International Ingress Protection Rating, the Authority is approved for ZERO water ingress during 30 minutes of submersion at 1 meter of depth whilst reel components are stationary.
Bail Trip
To prevent inadvertent bad closing in heavy casting applications, sizes 10500 feature a manual bail trip. Sizes 2500-5500 have automatic bail trip functionality if desired by the angler, simply crank the sturdy handle after casting to close the bail.
Braid Ready
To eliminate slippage and the need to use monofilament backing before spooling, the AUTHORITY features a textured ring at the base of the spool to be your braid directly onto.
Hydrophobic Line Roller Bearing
High grade sealed stainless bearing with a special coating that helps to bead water away mm this highly exposed and crucial part of any spin reel for dependable long-term performance.
Sealed Slammer Drag System with Dura-Drag
Silky smooth Dura-Drag carbon fiber washers eliminate hesitation even under extreme drag settings and are impregnated with a Phenolic bonding agent to reduce wear and water intrusion.
12+1 Sealed Stainless-Steel Premium Bearing System
Our smoothest reel yet with maximum bearing support for the heaviest of drag loads.
Product Specifications:
Product Code |
1563146 |
Description |
ATH2500 |
Line Cap. (yd/lb) |
BRAID 240/10 220/15 160/20 MONO 255/6 175/8 140/10 |
Gear Ratio |
5.7:1 (76cm) |
Bearings |
12+1 |
Drag Power |
20lb|9.1kg |
Weight |
337g |
Product Code |
1563147 |
Description |
ATH2500HS |
Line Cap. (yd/lb) |
BRAID 240/10 220/15 160/20 MONO 255/6 175/8 140/10 |
Gear Ratio |
7.0:1 (94cm) |
Bearings |
12+1 |
Drag Power |
20lb|9.1kg |
Weight |
337g |
Product Code |
1563148 |
Description |
ATH3500 |
Line Cap. (yd/lb) |
BRAID 310/10 270/15 220/20 MONO 360/6 285/8 220/10 |
Gear Ratio |
5.7:1 (86.5cm) |
Bearings |
12+1 |
Drag Power |
30lb | 13.6kg |
Weight |
405g |
Product Code |
1563159 |
Description |
ATH4500 |
Line Cap. (yd/lb) |
BRAID 390/15 320/20 250/30 MONO 425/8 320/10 235/12 |
Gear Ratio |
5.7:1 (94cm) |
Bearings |
12+1 |
Drag Power |
30lb | 13.6kg |
Weight |
425g |
Product Code |
1563160 |
Description |
ATH4500HS |
Line Cap. (yd/lb) |
BRAID 390/15 320/20 250/30 MONO 425/8 320/10 235/12 |
Gear Ratio |
7.0:1 (114cm) |
Bearings |
12+1 |
Drag Power |
30lb | 13.6kg |
Weight |
425g |
Product Code |
1563161 |
Description |
ATH5500 |
Line Cap. (yd/lb) |
BRAID 500/20 380/30 335/40 MONO 430/10 330/12 230/15 |
Gear Ratio |
5.2:1 (91.5cm) |
Bearings |
12+1 |
Drag Power |
40lb | 18.1kg |
Weight |
669g |
Product Code |
1563162 |
Description |
ATH6500 |
Line Cap. (yd/lb) |
BRAID 485/30 410/40 335/50 MONO 390/12 345/15 205/20 |
Gear Ratio |
5.2:1 (99cm) |
Bearings |
12+1 |
Drag Power |
40lb | 18.1kg |
Weight |
720g |
Product Code |
1563163 |
Description |
ATH6500HS |
Line Cap. (yd/lb) |
BRAID 485/30 410/40 335/50 MONO 390/12 345/15 205/20 |
Gear Ratio |
6.2:1 (122cm) |
Bearings |
12+1 |
Drag Power |
40lb | 18.1kg |
Weight |
720g |
Product Code |
1563164 |
Description |
ATH7500 |
Line Cap. (yd/lb) |
BRAID 530/40 440/50 400/65 MONO 490/15 330/20 220/30 |
Gear Ratio |
4.7:1 (96.5cm) |
Bearings |
12+1 |
Drag Power |
50lb | 22.7kg |
Weight |
842g |
Product Code |
1563165 |
Description |
ATH8500 |
Line Cap. (yd/lb) |
BRAID 730/40 600/50 555/65 MONO 455/20 310/30 260/40 |
Gear Ratio |
4.7:1 (107cm) |
Bearings |
12+1 |
Drag Power |
50lb | 22.7kg |
Weight |
882g |
Product Code |
1563166 |
Description |
ATH8500HS |
Line Cap. (yd/lb) |
BRAID 730/40 600/50 555/65 MONO 455/20 310/30 260/40 |
Gear Ratio |
5.3:1 (127cm) |
Bearings |
12+1 |
Drag Power |
50lb | 22.7kg |
Weight |
882g |
Product Code |
1563167 |
Description |
ATH10500 |
Line Cap. (yd/lb) |
BRAID 845/50 780/65 540/80 MONO 435/30 360/40 255/50 |
Gear Ratio |
4.2:1 (109cm) |
Bearings |
12+1 |
Drag Power |
60lb | 27.2kg |
Weight |
1057g |
Buy your 22 Penn Authority Spin Reel with confidence from Australia's trusted tackle store Australia Wide!
This product is supplied by the Authorized Australian Dealer and comes complete with Full Australian Warranty.
Still need more info? Give one of our friendly sales team a call on 0755363822 during business hours and we'll be happy to help.
SKU | 786_ |
Barcode # | 031324283367 |
Brand | Penn |
Shipping Weight | 2.0000kg |
